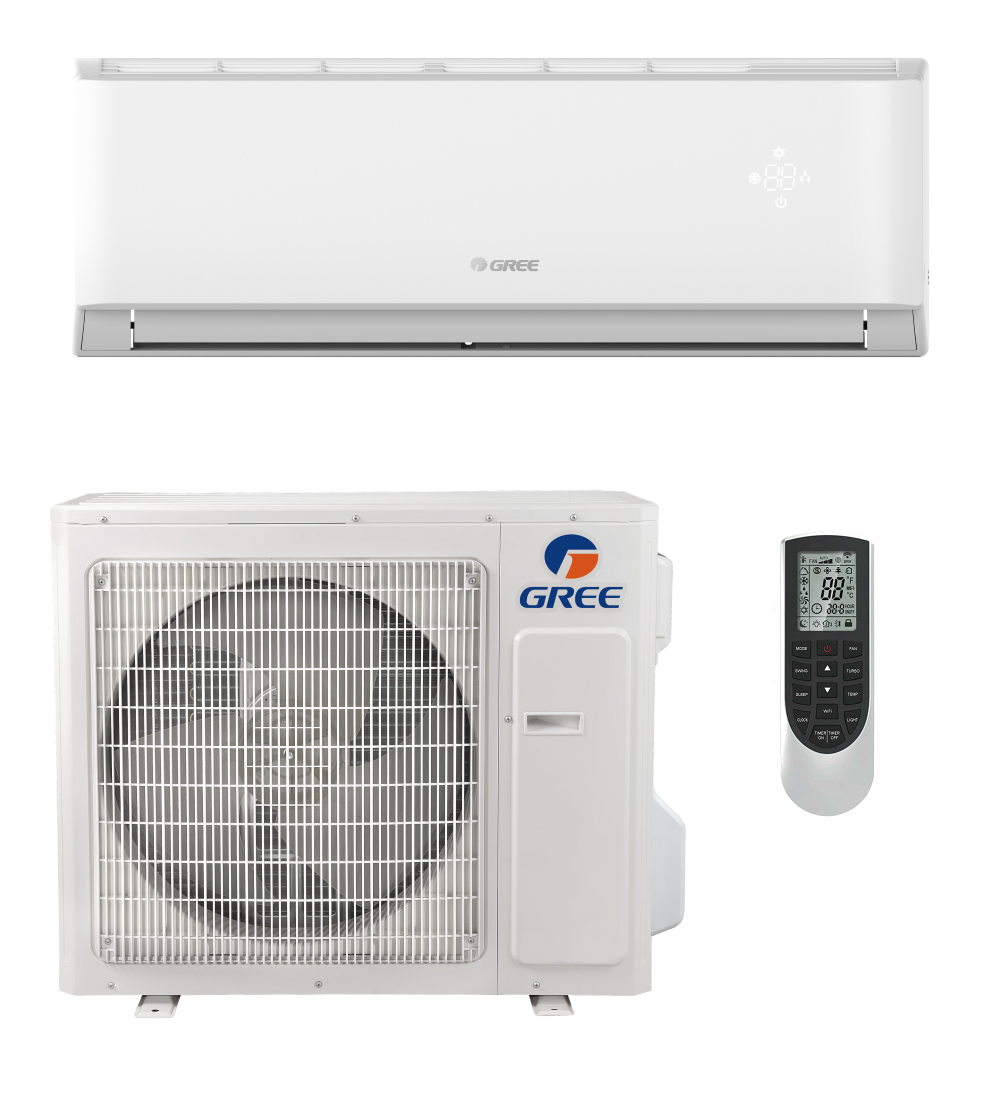

12,000 BTU 17.5 SEER2 Wall Mount Gree Mini-Split Livo Gen4 Single Zone Heat Pump
The Gree Livo Gen4 system delivers high efficiency and quiet comfort, powered by Gree's advanced G10 Inverter and variable compressor technology. This innovative design allows the system to achieve the desired temperature faster and maintain it consistently, ensuring optimal performance. Maintenance is made simple with the integrated self-diagnostics tool.
The system offers multiple fan speeds for personalized comfort. Its indoor unit includes a sleep mode to prevent temperature fluctuations from disrupting your rest. A hidden backlight display provides clear visibility of the current temperature and operating modes. Additionally, the included handheld remote control features a programmable timer and the I Feel mode, which adjusts airflow based on the temperature around the remote for improved comfort.
The Gree Livo Gen4 is AHRI Certified and backed by a 5-year limited warranty for peace of mind.
Features:
- Heating, Cooling, Auto, Dry, and Fan modes
- High-efficiency G-10 Inverter Technology
- Multiple fan speed settings
- I Feel mode for personalized airflow adjustment
- IR remote control with programmable timer
- Privacy lock mode for added security
- Sleep mode for consistent nighttime comfort
- Fahrenheit °F and Celsius °C display options
- Self-diagnosis for easier maintenance
- Low voltage start-up for energy efficiency
- Intelligent defrost for reliable performance
- Blue fin condenser for enhanced durability
This system combines advanced technology, efficiency, and user-friendly features to provide reliable and comfortable heating and cooling.
PRODUCT SPECIFICATIONS
12,000 BTU 17.5 SEER2 Wall Mount Gree Mini-Split Livo Gen4 Single Zone Heat Pump - 4LIV12HP115V1A SKU 4LIV12HP115V1AH / 4LIV12HP115V1AO Refrigerant Charge Pre-Charged For: 25' Weight (in lbs) 100.400000 AHRI Certificate Number 9956323 Brand/Manufacturer Gree Controller Wireless Included Product Features Hyper Heat Additional Information Heat Pump Additional Information Maximum Line Set Length: 66' Additional Information Minimum Line Set Length: 10' Additional Information Drain: 5/8" HSPF2 8.5 Cooling BTU 12,000 Heating BTU 12,000 Maximum CFM 182 - 424 CFM Decibel Level (dBA) Indoor Unit: 27 - 47 dB(A) | Outdoor Unit: 52 dB(A) Energy Star No Refrigerant R410A SEER2 (Efficiency) 17.5 Compressor Type Rotary Liquid Line 1/4" Suction Line 3/8" Electrical 115V 1 Phase 60Hz Phase Single Phase Max Breaker Size 30 Amps Min. Breaker Size 20 Amps BTU/Tonnage 12,000 BTU/1 Ton Mini Split Type Wall Mounted Min/Max Outdoor Temp for Heating -13° - 75° Min/Max Outdoor Temp for Cooling 0° - 115° Zone Compatibility Single Zone Height Indoor Unit: 11.4" | Outdoor Unit: 21.3" Width Indoor Unit: 33.3" | Outdoor Unit: 33.4" Depth Indoor Unit: 8.3" | Outdoor Unit: 11.3" Additional Info Indoor Unit Weight: 27.6 lbs | Outdoor Unit Weight: 72.8 lbs Warranty 5 year Limited Parts Warranty Resources Product Resources
The following documents may not be readily available online. For specific manuals or certifications, we recommend contacting Gree customer support or an authorized Gree dealer:
- Brochure
- Submittal
- Installation Manual
- Owner's Manual
- Service Manual
- Parts Manual
- AHRI Certificate
- Extended Ratings
Safety Information PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
- This unit must be installed by a licensed HVAC technician to ensure proper operation and to avoid voiding the warranty.
- Ensure the product is connected to the correct voltage and electrical specifications to prevent electrical hazards.
- Do not attempt to modify or service internal components without professional assistance.
- The unit is designed to operate in temperatures ranging from -4°F to 115°F.
• • Always refer to the installation manual for detailed safety instructions.
